RSD's SoundMan-Designer Software for SoundMan-Server/AudioBox II - EQ & Delay Windows

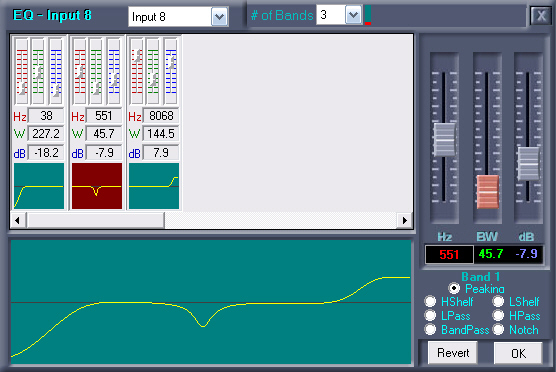

In the input or output window when the EQ icon is clicked, this window comes up. For each fader there can be up to 7 bands of EQ. The global limit is 96 bands per each 16 channel matrix section. In the top window, parameters for each individual band is displayed and in the bottom window is the combined EQ graph.

The frequency range is 20Hz to 20kHz. The bandwidth range is 0.5 to 50. The adjustment range is +/-20dB.

RSD's SoundMan-Designer Software - Delay Window

In the input or output window, when the number below the "D" is clicked, this window appears. The total budget for delay is 7.255 seconds or 7255 milliseconds. This can be distributed amongst inputs, crosspoints and outputs.
