RSD's ABEdit Software - Crosspoint Window

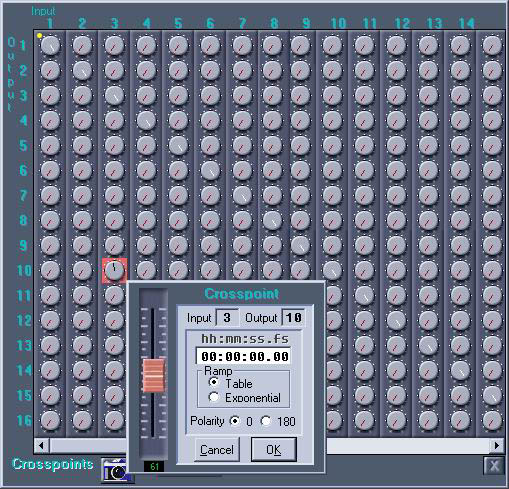

The crosspoints window is where inputs are assigned to outputs.

Crosspoints Window

When a knob is double-clicked, this window appears:

Crosspoint Control Window

The window is fairly self-explanatory. There is also the option to change the polarity of a cross point by 180 degrees.

Camera The camera icon is the snapshot button which is discussed in the snapshot section.

The Set Matrix button will open this window:

Set Matrix Window

This window allows you to quickly set up some frequently used presets.
